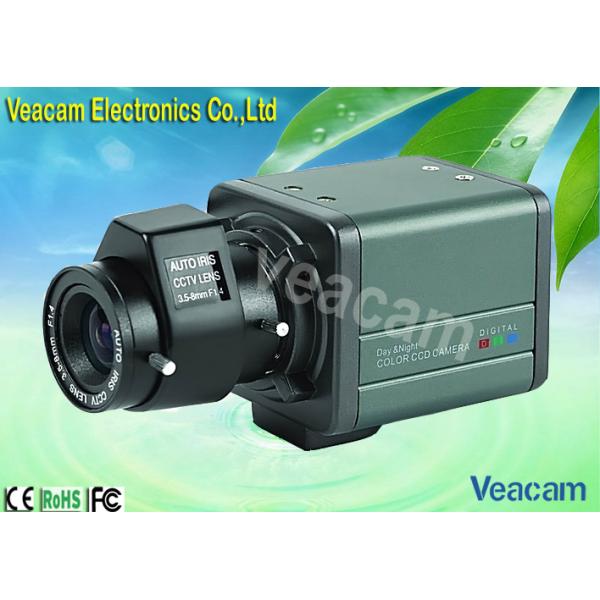

Auto White Balance Standard CCTV Box Cameras With 1 / 3' SONY CCD, BLC And AGC Function

Product Categories
Veacam Electronics Co.,Ltd
Contact Now

Auto White Balance Standard CCTV Box Cameras With 1 / 3' SONY CCD, BLC And AGC Function

  • 1
  • 2
  • 3

Place of Origin : China

Brand Name : VEACAM

Model Number : VCQC

Certification : CE,FCC,RoHS

MOQ : 10PCS

Price : Depend on Resolution and Quantity

Packaging Details : High Quality Carton Box

Delivery Time : 3-10 Days,Depends on Quantity

Payment Terms : T/T;L/C;West Union;Paypal

Supply Ability : 45000 Set Per Week

Contact Now

Auto White Balance Standard CCTV Box Cameras With 1 / 3' SONY CCD, BLC And AGC Function

Features:
Standard Box Camera
AES/Iris control:DC
BLC and AGC Function
This is a professional day & night color camera with SONY circuitry providing a high resolution of 540 Lines. It has excellent picture clarity and is an incredible value for a day & night color camera.


This is a professional color box camera with SONY circuitry providing a high resolution of 540TV Lines. It has excellent picture clarity .

This model will not disappoint you if you are searching high and low for an affordable camera. The 420 TV lines of resolution will ensure you to have a sharp eye on your surveillance needs. And with a low light rating of 0.01 lux, it will work great even with less than perfect lighting conditions.


Specification:
Model
VCQC7
VCQC5
VCQC4
VCQC1
Image Sensor
1/3' SONY CCD
1/3' SONY CCD
1/3' SONY CCD
1/4' SHARP CCD
Horizontal Resolution
540TV Lines Low Illumination
480TV Lines
420TV Lines
Pixels
PAL:752(H)×582(V), NTSC:768(H)×494(V)
PAL:500(H)×582(V) , NTSC:510(H)×492(V)
TV System
PAL / NTSC
Horizontal sync frequency
PAL:15.625KHZ / NTSC:15.734KHZ
Clock
PAL:19.3125 / NISC:19.0699
Scanner
2:1 interlace
Minimum Illumination
0.01LUX
0.1LUX
0.01LUX
0.1LUX
Synchronization
Internal
SNR
≥54dB (AGC OFF)
≥48dB (AGC OFF)
Shutter
PAL:1/50-1/100, 000sec;NTSC:1/60-1/100, 000
Gamma characteristics
0.45
Video Output
1 Vpp, 75 Ohms
Gain Control
Automatic
Infrared light (distance)
Without
Operation Temperature
-10℃ ~ +50℃ RH95% Max
Storage Temperature
-20℃ ~ +60℃ RH95% Max
White Balance
Auto
Power Source
DC12V 750mA
Dimension
Size:70(L)*57(W)*50(H)mm
Weight
650g

WDR ON/OFF

Effio-E solution Dimentions

Dimentions
