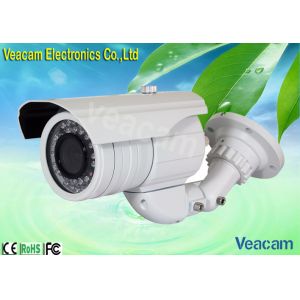

4 - 9mm Manual Zoom Lens LED Waterproof IR Camera of DC12 / AC 24V Optional

Place of Origin : China

Brand Name : VEACAM

Model Number : VCV30D

Certification : CE,FCC,RoHS

MOQ : 10PCS

Price : Depend on Resolution and Quantity

Packaging Details : High Quality Carton Box

Delivery Time : 3-10 Days,Depends on Quantity

Payment Terms : T/T;L/C;West Union;Paypal

Supply Ability : 45000 Set Per Week

Contact Now

4 - 9mm Manual Zoom Lens LED Waterproof IR Camera of DC12 / AC 24V Optional
Features:
Waterproof IR Camera
4-9mm Manual Zoom Lens
2.8-12mm is Optional
LED: ￠5X36PCS
30M IR Working Distance
DC12/AC24V is Optional
3-Axis Cable Built-in Bracket
Water Resistant Rate:IP66
The bracket included with this camera completely conceals the video and power cable of the camera. The bracket is also a 3 axis style which allows you to rotate the body of the camera in any direction to get the exact view that you want.
The camera also has a on screen display menu (Cable OSD) controllable that you can control with the button located on the camera cord to change several camera settings.It has the perfectest hiht-end image surveillance process function.

The most attractive characteristics are water-resistant, with rust proof aluminum housing and cable built-in bracket for outdoor usage. Water resistance IP66 case.

This camera Adopt TaiWan high quality IR LED, having very good night-vision effect. 0 Lux with IR LED ON.
You can manually adjust the lens at time of installation from 2.8mm for a wide angle view of 90 degrees to see things up close or set it all the way to 12mm for a 4.5x zoom to see objects that are 50ft away and farther.

A 2.8-12mm varifocal lens provides the installer with the capability to adjust the field of view to the exact angle needed for you surveillance application.
Specification:
Model
VCV30D11
VCV30D10
VCV30D9
VCV30D7
VCV30D5
VCV30D4
VCV30D1
Image Sensor
1/3' SONY CCD
1/3' SONY CCD
1/3' SONY CCD
1/3' SONY CCD
1/3' SONY CCD
1/3' SONY CCD
1/4' SHARP CCD
Horizontal Resolution
Effio 700TV Lines Low Illumination, OSD, ATR, 2D-NR
Effio 650TV Lines Low Illumination, DWDR, OSD
600TV Lines Low Illumination
540TV Lines Low Illumination
480TV Lines
420TV Lines
Pixels
PAL:976 (H)× 494(V) NTSC :976 (H) ×582 (V)
PAL:795 (H)× 596(V) NTSC :811 (H) ×508 (V)
PAL:752(H)×582(V), NTSC:768(H)×494(V)
PAL:500(H)×582(V) NTSC:510(H)×492(V)
TV System
PAL/NTSC
IR LED
￠5 X 36 PCS
IR Series Distance
30 M
Lens
4-9mm Manual Zoom Lens(2.8-12mm Optional)
Sync System
Internal
IR Status
Under 10 Lux By CDS
Usable Illumination
0.001Lux/F2.0
0.0005Lux/F2.0
0.01Lux/F2.0
IR Power On
CDS Auto Control
S/N Ratio
≥65dB (AGC OFF)
≥54dB (AGC OFF)
≥48dB (AGC OFF)
Gamma Correction
0.45
Video Out
Composite Signal (1.0Vp-p, 75Ω)
Scanning System
PAL:625 Lines, 50 Field/Sec;NTSC:525 Lines, 60 Field/Sec
Electronic Shutter Time
Auto:PAL 1/50-1/100, 000Sec;NTSC 1/60-1/100, 000Sec
Operation Temperature
-10℃ ~ +50℃ RH95% Max
Storage Temperature
-20℃ ~ +60℃ RH95% Max
White Balance
Auto
Power Source
DC12V 750mA (DC12/AC24V is Optional )
Dimension
256(L) x86(W) x143(H)mm
Weight
1400g
